Specification of high bay lights
1. Light source: 5630 samsung Led
2. Low Power comsumption
3. High Luminosity and long lifetime
4. Environmentall friendly
5. Excellent opto-electronic performance
6.High efficiency cooling system,patented heat sink for BBT led high bay, ensure the working temperature below 65 centigrade
7. HLG Meanwell driver, UL,CE,ETL,CSA,TUV,PF>0.98, no need driver box.
8. IP66, can be used wet place
8. Different Led High Bay series: 100w and 150w
9. 5 years warranty time, 80000h lifespan.
| Model | GK-G150A |
| Power | 150W |
| Input Voltage | AC100~305V 50/60HZ |
| Light Efficency | >110lm/w |
| Power Factor | >0.98 |
| Total Harmonic Index | < 20% |
| Flux | 16500lm |
| LED Life time | >80,000h |
| Operation Temperature | -30℃+50℃ |
| Color Temperature | 3000K/4000K/5000K/5500K |
| Driver | Meanwill Driver |
| IP Grade | IP66 |
| Color Redering Index | Typical 75 |
| Material | Aluminum+copper |
| Light Size | Φ280*H160mm |
| Package | 1pcs in one carton |
| Net Weight | 3.6kg |

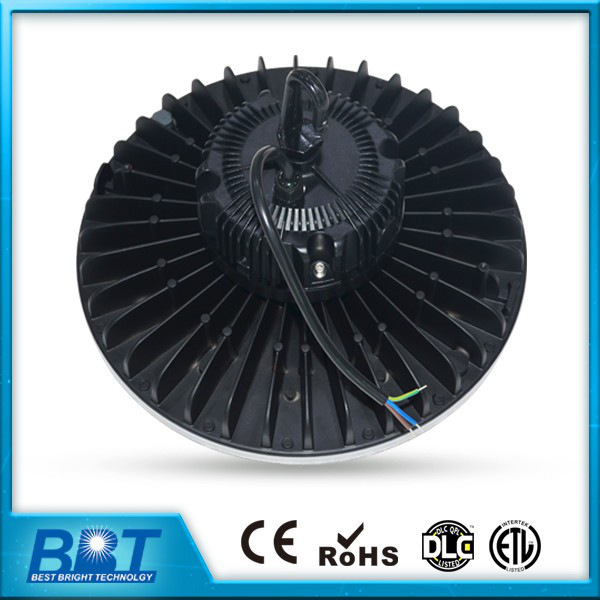

Pictures of high bay lights
Lighting Data of high bay lights
Other Series of Our high bay lights
A SERIS
| model | certification | power | lumen | Driver | Led | IP |
| GK-A080A | DLC ETL CE ROHS | 80W | 8400lm | Meanwell driver | Bridgelux | 65 |
| GK-A100A | DLC ETL CE ROHS | 100W | 10500lm | Meanwell driver | Bridgelux | 65 |
| GK-A120A | DLC ETL CE ROHS | 120W | 12600lm | Meanwell driver | Bridgelux | 65 |
| GK-A180A | DLC ETL CE ROHS | 180W | 18900lm | Meanwell driver | Bridgelux | 65 |
| GK-A200A | DLC ETL CE ROHS | 200W | 21000lm | Meanwell driver | Bridgelux | 65 |
| GK-A250A | DLC ETL CE ROHS | 250W | 26250lm | Meanwell driver | Bridgelux | 65 |
| GK-A300A | DLC ETL CE ROHS | 300W | 31500lm | Meanwell driver | Bridgelux | 65 |
D SERIS
| model | power | lumen |
|
|
samsung 5630 LED UFO led high bay light 100w smart design Images
|
|
